Metal single mode SC to FC female/male fiber hybrid flange adapter
Description:
Optical fiber adapters are the most widely used optical passive components in optical fiber communication systems. Most optical fiber
adapters are composed of three parts: two optical fiber connectors and a coupler. Two optical fiber connectors are installed into the two
optical fiber tail ends; the coupler acts as an alignment sleeve. In addition, the couplers are mostly equipped with metal or non-metal
flanges to facilitate the installation and fixation of the connectors.
Both ends of the fiber optic adapter can be inserted into fiber optic connectors of different interface types to realize the conversion
between different interfaces such as FC, SC, ST, LC, MTRJ, MPO, E2000, etc. It is widely used in optical fiber distribution frames (ODF),
optical fiber communication equipment, Instruments, etc., superior performance, stable and reliable.
Features:
Low insertion loss
Simplex or duplex
Good exchangeability and repeatability
High prcision alignment
Durability >1000 times
Use connect PC,UPC,SPC,APC polished SC Fiber Optic Connectors
Application:
CATV networks
Local Area Network
Instrumentation
Telecommunication
Adapter Panel
ODF Frame
| Project | Specifications |
| Applicable connector type | FC,ST,SC,LC,MU,MTRJ,ST-SC,FC-SC,ST-FC |
| Connector fiber type | Single mode | Multimode |
| Test wavelength | 1310nm,1550nm | 850nm,1300nm |
| Insertion loss | Typical value: ≤0.15dB
Maximum value: ≤0.20dB | Typical value: ≤0.15dB
Maximum value: ≤0.20dB |
| Repeatability | ≤0.10dB |
| Interchangeability | ≤0.20dB |
| Pluggable performance | Change in loss after 1000 insertions
and removals≤0.20dB |
| Number of channels | Single core, dual core, 4 core |
| Frame material | Metal or plastic |
| Sleeve material | Ceramic or metal |
| Operating temperature | -20℃to +70℃ |
| storage temperature | -40℃to +85℃ |

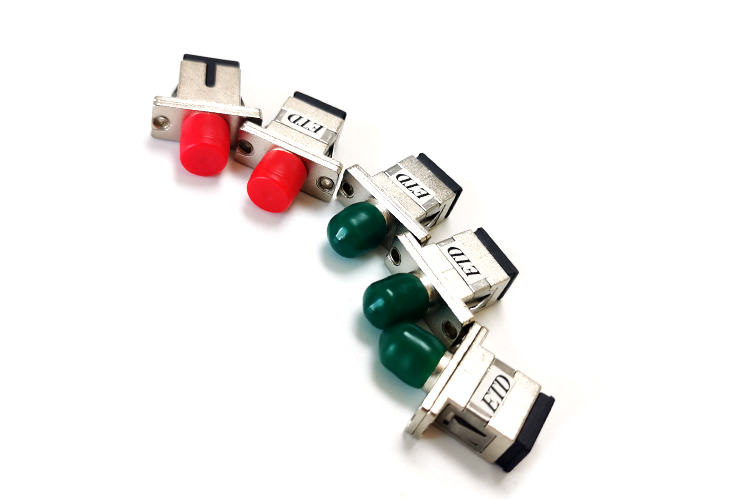

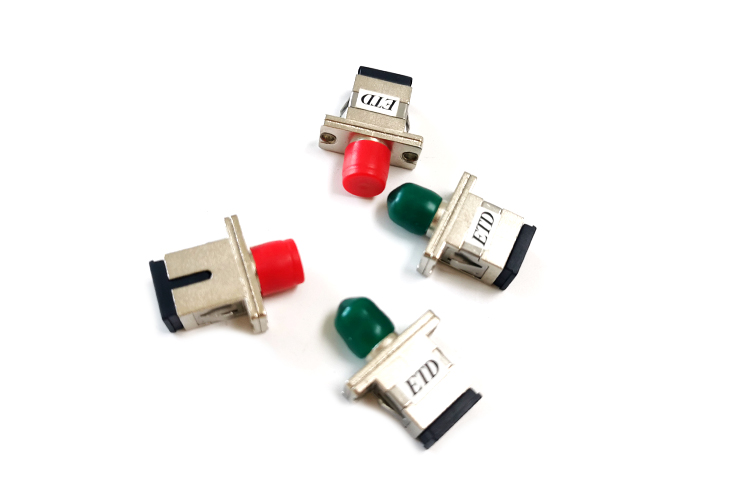

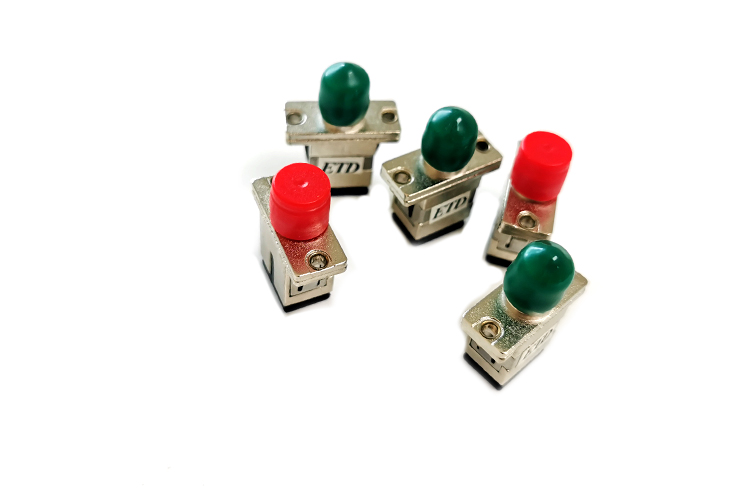

product show:
Question and answer:
1. What is your MOQ?
Otop : Normally is 1pcs/item,could be coordinated if you have detail requirements.
2. How about your delivery date?
Otop: Delivery date is about 3-5days, it depends on the order quantity.
3. Can you supply sample for customers?
Otop: of course, however the delivery cost will be charged on customer's account.
4. How about your price?
Otop: We are supplying products with very competitive price based on good performance.
5. Do you offer OEM Service ?
Otop: We accept OEM, ODM. The cable size and material are customized. Our own logo and own design are welcome. We will produce
