High Uniformity 1X16 SC UPC Splitter For WAN System 55/55 -40℃~85℃

  • 1
  • 2
  • 3

Certification : ISO 9001

MOQ : 10 Pieces

Price : Negotiable

Packaging Details : Cartoon

Delivery Time : 7-10 Days

Payment Terms : 30% deposit , Balance due within 7 days from date of shipment bill of lading

Supply Ability : 50000 Monthly Output

Place of Origin : China

Brand Name : JIE TAI XIN

Product Name : Fiber Cable Splitter

Advantages : High environmental and mechanical stability

Application : WAN System

Shipping : Safety

Connectors : SC/LC/FC/ST /MTRJ/MPO Or Other

Type : Single-mode, Multi-mode

operating wavelength : 1260nm-1650nm

length : 1.5m

connector type : 1X16 SC UPC

RL(dB) : 1313~1550

Contact Now

High Uniformity 1X16 SC UPC Splitter For WAN System Good Mechanical Stability





Description:
We can provide whole series of 1xN and 2xN splitter products that are tailored for specific applications.

The fiber optic splitter is one of the most important passive devices in the optical fiber link, is optical fiber tandem device with many input terminals and many output terminals, especially applicable to a passive optical network (EPON.GPON.BPON.FTTX.FTTH etc.) to connect the MDF and the terminal equipment and to achieve the branching of the optical signal.

Features:

  1. Excellent directivity
  2. High environmental and mechanical stability
  3. Good channel-to-channel uniformity
  4. High cost-effectiveness



Applications:

  1. Fiber optical communication system
  2. Fiber optical sensors
  3. CATV System
  4. LAN System
  5. WAN System



Advantages
1. Guaranteed high quality products
2. Fast delivery speed
3. Safety Shipping
4. Quick Response within 24hours



Our service:

  1. We could print your company name on the cable.
  2. Standard and customized OEM products from small to large quantity are welcome.
  3. Compliance with global environmental industry with RoHS and SGS standards.
  4. All products are 100% fully tested by our technical expertise.

Specification:

1 1xN (with connector)
(Number of Channels) 1×2 1×4 1×8 1×16 1×32 1×64 2×2 2×4 2×8 2×16 2×32 2×64
(Operating Wavelenth) 1260 to 1650
P Level Insertion Loss 4 7.4 10.5 13.7 17 20.3 4.4 7.6 10.8 14.1 17.4 20.7
S Level Insertion Loss 4.2 7.6 10.7 14 17.3 20.7 4.6 7.9 11.2 15 18.1 21.7
(Uniformity) 0.4 0.6 0.8 1 1.2 1.6 0.8 1 1.2 1.5 1.8 2
(PDL) 0.2 0.3 0.3 0.3 0.3 0.5 0.3 0.3 0.3 0.3 0.3 0.5
(Return Loss) more than 55
(Directivity) more than 55
(Type of fiber) ITU G657A
(Operating temperature) -40 to 85
PLC
Splitte		 Port Type Cable Type Fiber Length Connector Type Package Style
1*4
1*8
1*16
1*32
1*64
2*32
Others Specify		 0.25mm Bare fiber
Ribbon Fiber
Fan-out with 0.9mm Loose Tube
2.0mm Cable
3.0mm Cable		 1 meter
1.5 meter
specify		 FC/APC
FC/PC
SC/APC
SC/PC
ST/UPC
LC/APC
Others Specify		 Stainless steel sleeve
Plastic Module
19 1U Rack Mount
Others Specify



PRODUCT SHOW:

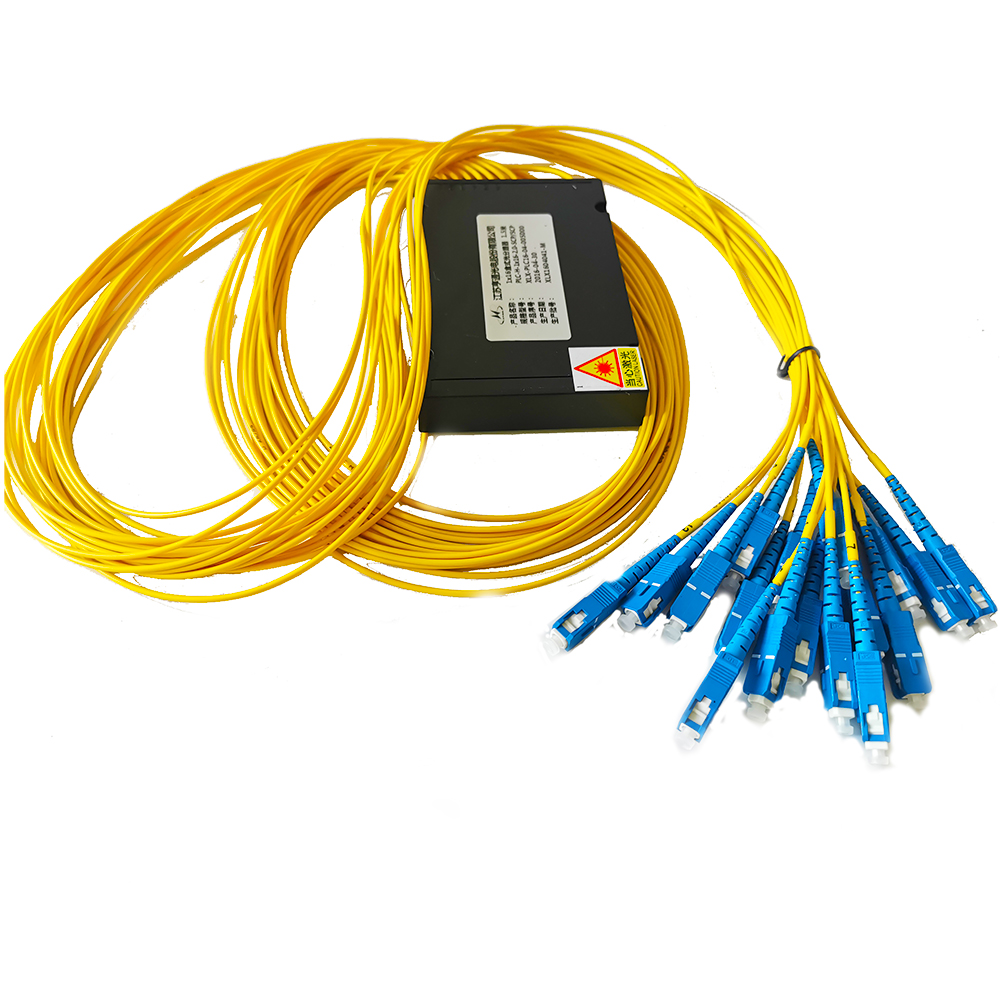

High Uniformity 1X16 SC UPC Splitter For WAN System 55/55 -40℃~85℃

 Question and answer:
1. What is your MOQ?
Otop : Normally is 1pcs/item,could be coordinated if you have detail requirements.

2. How about your delivery date?
Otop: Delivery date is about 3-5days, it depends on the order quantity.

3. Can you supply sample for customers?
Otop: of course, however the delivery cost will be charged on customer's account.

4. How about your price?
Otop: We are supplying products with very competitive price based on good performance.

5. Do you offer OEM Service ?
Otop: We accept OEM, ODM. The cable size and material are customized. Our own logo and own design are welcome. We will produce
